Hydrostatic Pressure Testing Services
► Internal and external hydrostatic testing
► Operational tests requiring electrical and hydraulic Penetrations
► Paramaters Monitoring: Pressure, Temperature, Video & Instrumentation
► Tesing of equipments pressure housing's, Cabling, transducers, ECT

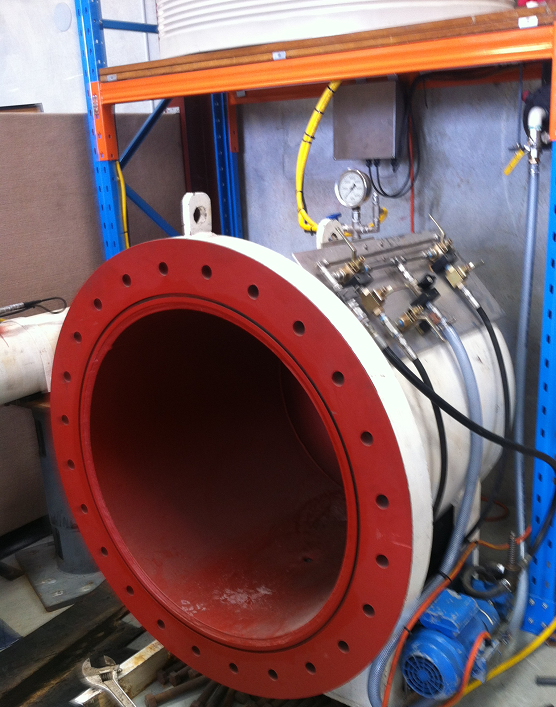

Design Specifications
Design calculations are in accordance with BDI PD 5500:2000, Specifications for Unfired Fusion Welded Pressure Vessels.
Room for penetrators on end bells.
Diameter: 860mm Ø
Depth: 1120mm
Pressure Relief Valve/Maximum Pressure: 70bar
Design Temperature: 16° Celsius(Not to exceed 50° Celsius)
Number of Penetrators: Adaptable Pressure Plates
________________________________________________

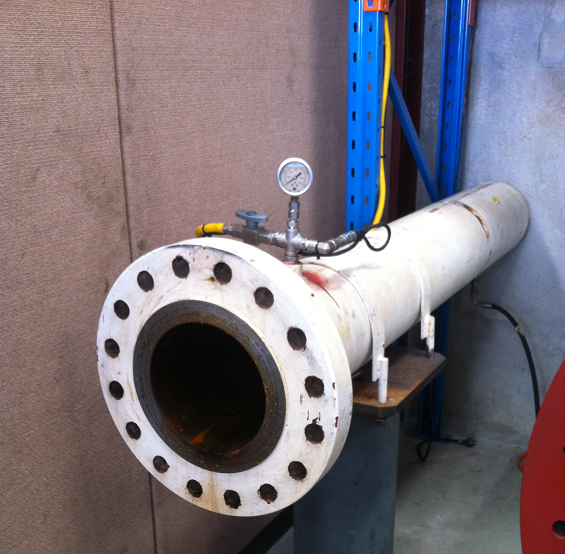

Medium Pressure Hydrostatic Testing Vessel
Diameter: 240mm Ø
Depth: 1950mm
Pressure Relief Valve/Maximum Pressure: 300bar
Design Temperature: 16° Celsius(Not to exceed 50° Celsius)
Number of Penetrators: Adaptable Pressure Plates
